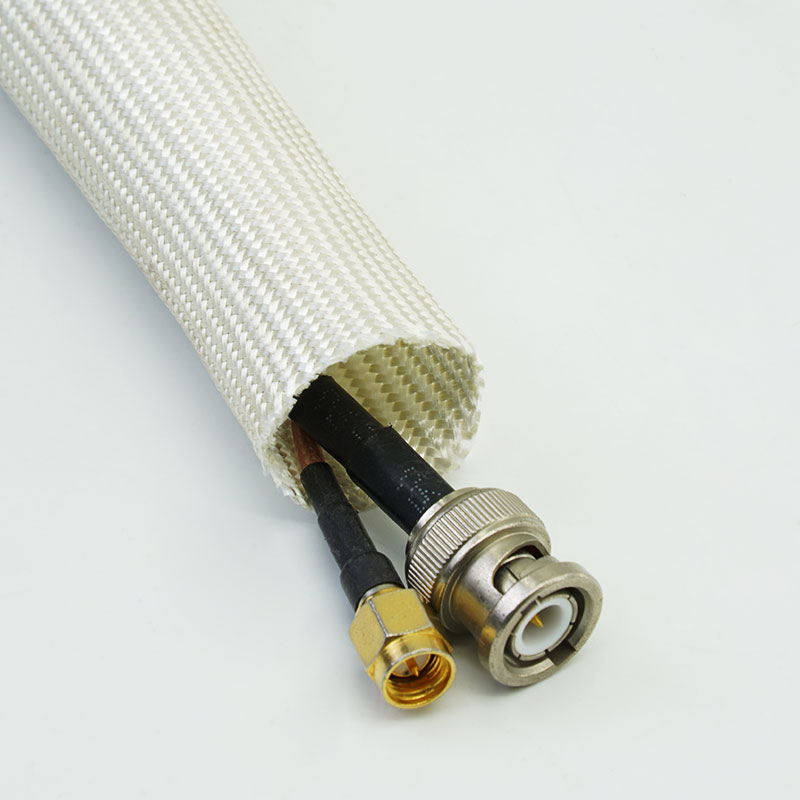

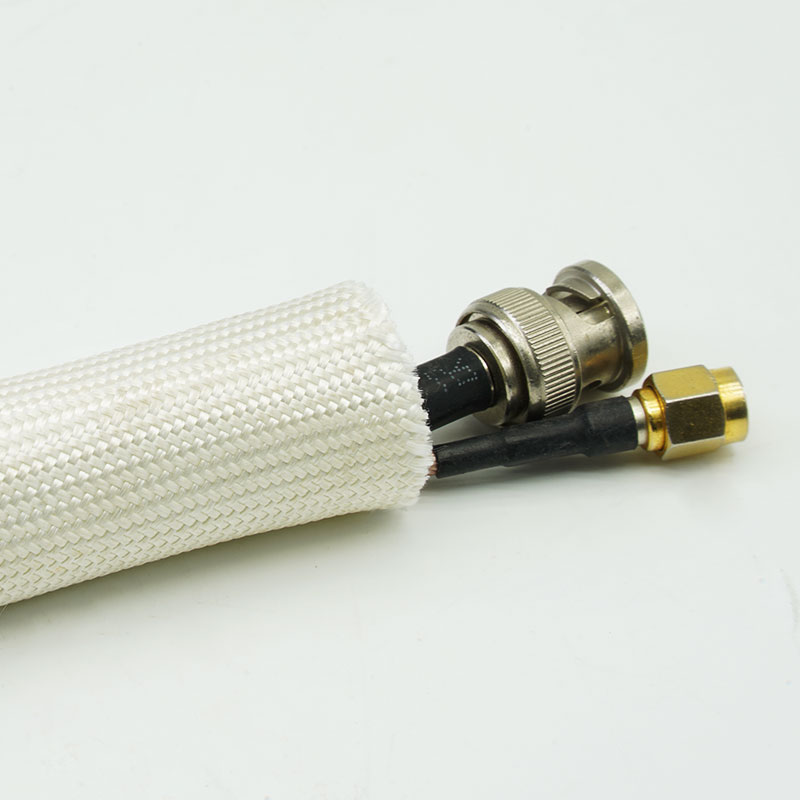

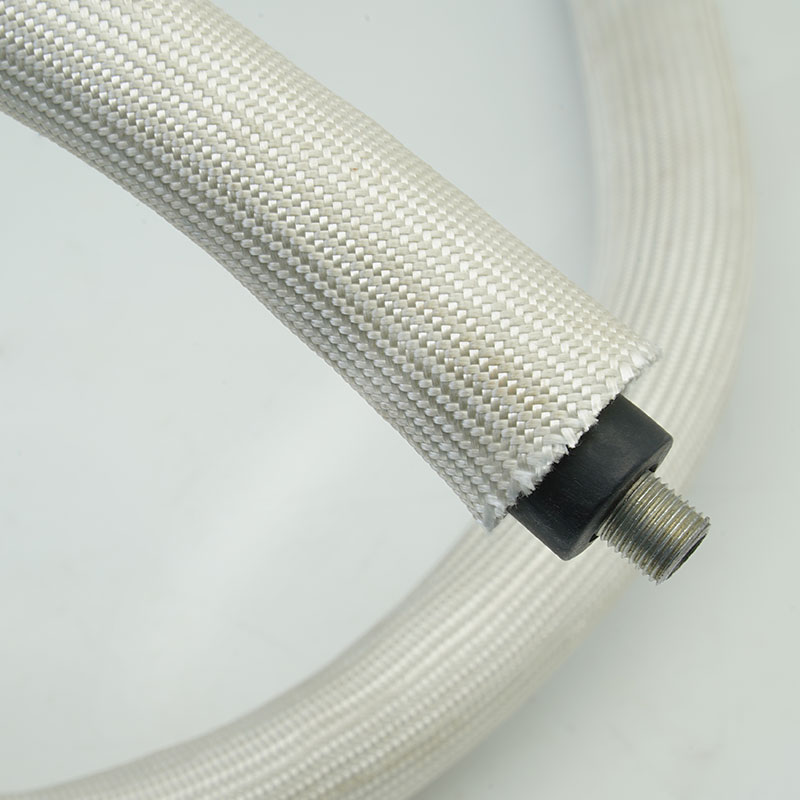

Heat Treated Braided Fiberglass Sleeving

• Insulate compact high-temperature assemblies

Thin walls from 0.20 to 0.50 mm protect small wires and leads without adding excessive bulk.

• Improve consistency during installation

Heat setting stabilizes the braid, helping it hold its diameter and pass more smoothly over the protected component.

• Reduce cutting and handling problems

The treated surface is smoother and more resistant to fraying than untreated braided fiberglass.

• Cover fine diameters with a broad size program

Available in various inner diameters for sensor leads, motor winding connection wires, and internal equipment wiring.

• Fiberglass yarn

Woven from fiberglass yarns without a polymer coating, providing a heat-resistant braided structure.

• High-temperature heat setting

Improves dimensional stability and creates a more uniform tubular profile.

•Uncoated and Lightweight Design

The uncoated construction keeps the sleeve lightweight and low-profile, making it suitable for electrical assemblies and compact routing spaces.

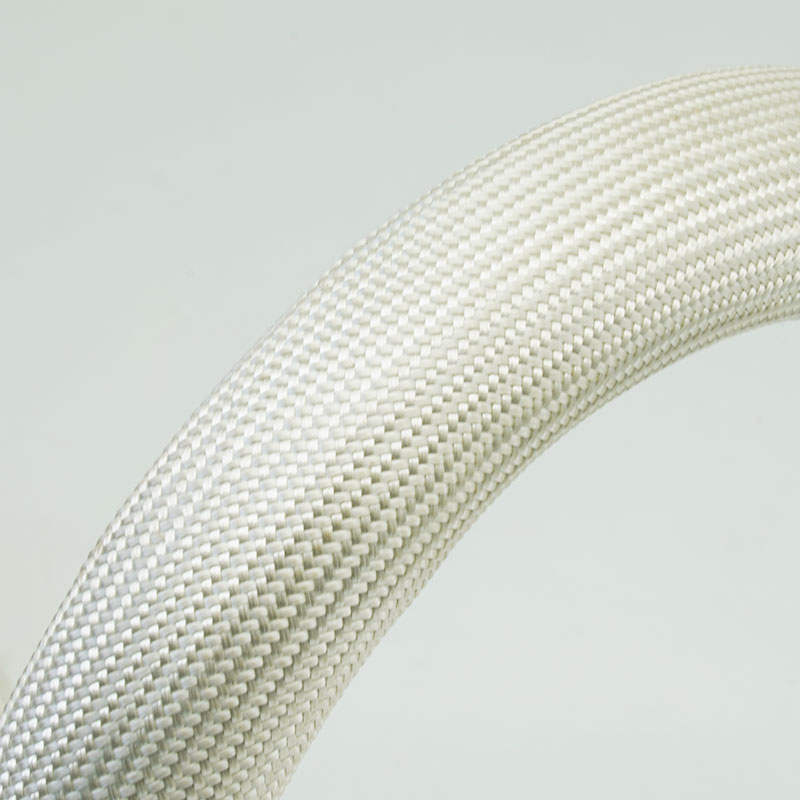

• Flexible Tubular Structure

The flexible braided structure accommodates practical routing and moderate bends, making installation easier across different cable and component configurations.

• Electrical and Thermal Separation

Suitable for routing applications requiring wire separation, thermal protection and basic mechanical protection, helping improve assembly organization.

• Versatile Sizing for Different Applications

Available in a range of inside diameters for sensor leads, motor connections, equipment wiring and other assemblies requiring lightweight thermal sleeving.

Measure the maximum OD along the protected component and any terminal transition the sleeve must pass over. Select a close fit that can be installed without damaging the braid or compressing the insulation beneath it. Check temperature at the sleeve location, conductor voltage, bend radius, vibration and contact with sharp edges. For moving routes, validate flex life and abrasion in the finished assembly.

• Sizes & Dimensions - A range of standard inside diameters is available, with custom sizes and wall thicknesses subject to application requirements.

• Colors & Identification - White is the standard color, with additional colors and identification options available for review based on customer requirements.

• Cut Lengths - Roll lengths and custom-cut pieces are available.

• Packaging - Spool configurations, labeling and customized packaging can be arranged according to order requirements for bulk purchasing and delivery.

• Raw Material Verification - Fiberglass yarn materials, appearance and incoming quality are verified against the approved product requirements.

• Braiding Quality Inspection - Braid density, construction uniformity and yarn integrity are inspected to identify broken yarns, loose braiding and other quality defects.

• Dimensional Inspection - Inside diameter, wall thickness and finished length are inspected against product specifications and applicable tolerances to ensure order conformity.

• Surface and Workmanship Inspection - Sleeves are inspected for excessive fuzz, fraying, contamination, deformation and other visible defects to ensure conformity with established workmanship requirements.

• Final Inspection and Traceability - Part numbers, specifications, colors, quantities, labels and packaging are verified before shipment, with relevant batch information reviewed according to order requirements.
